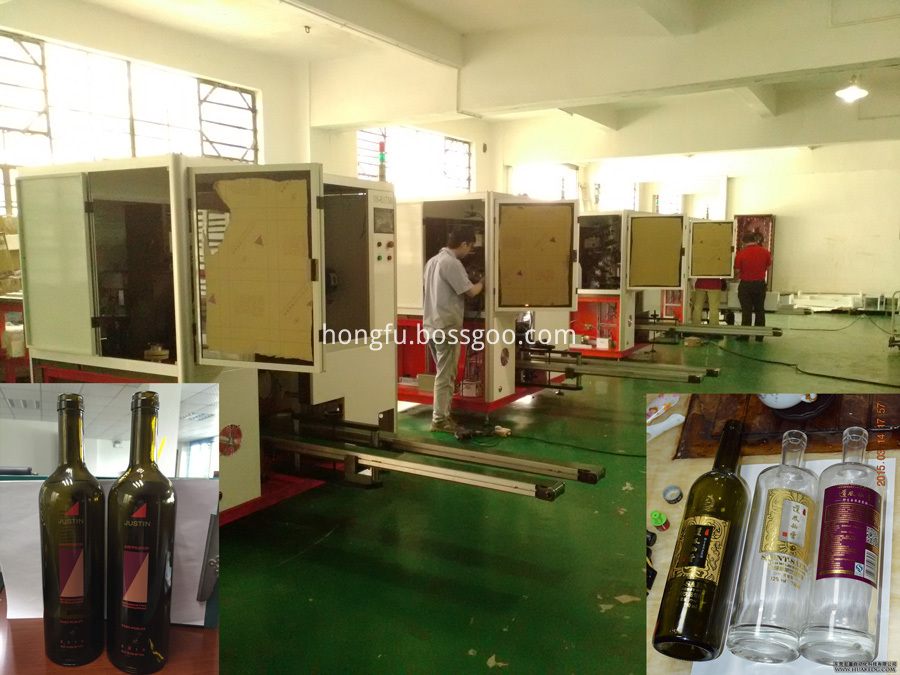

S320 Automatic UV Screen Printer for Wine Glass Bottles
Application:
The S320 Machine is designed for 3+colours decoration of all shapes of Glass Bottles Printer,Wine Bottles Printer.
General Description:
1.Automatic loading system with multi axis servo robot
2.Indexing table system with best accuracy
3.Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
4.All jigs with individual servo motor driven for rotation
5.Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen.
6.All Ethercat servo motors with industrial PLC control & touch screen operation system, internet cable connection available for future maintenance and program upgrading
7.Automatic unloading with servo robot
8.Safety operation with CE
Tech-data :
Power |
380VAC 3Phases 50/60Hz |
Air consumption |
5-7 bars |
Max printing speed |
40-60pcs/min |
Printing Diameter |
25--100mm |
Printing Length |
50-320mm |
UV power |
5000w each, 240w/cm |
