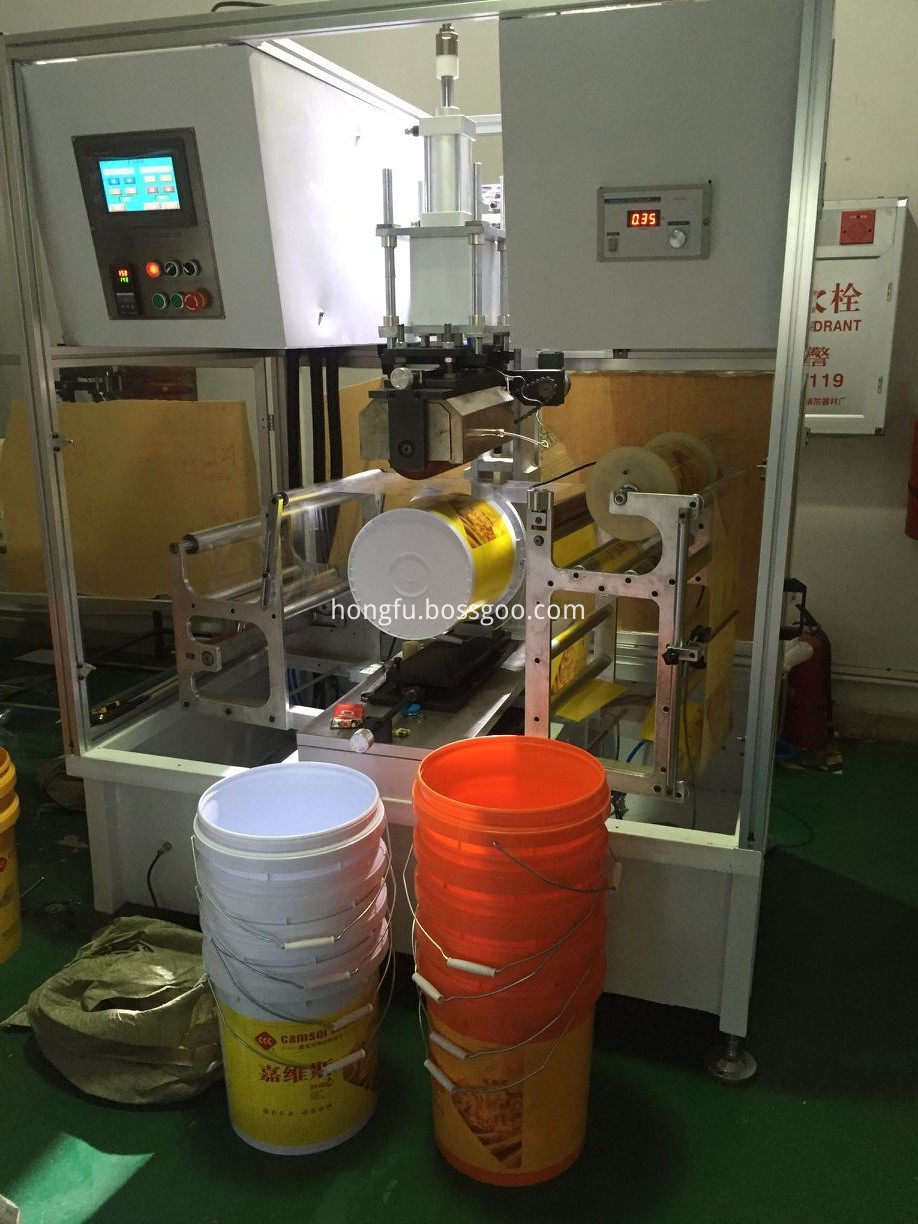

Automatic Paint Bucket Heat Transfer Printing Machine
Application
This Plc Control Pailt Bucket Heat Transfer Printing Machine is designed for Bucket Transfer Printing, Pail Heat Transfer Printing , Barrel Heat Transfer Printing,Jars Heat Transfer Printing and Container Transfer Printing.
1. PLC controller from jepan ,easy to operate, automatic working by three parameter:
perimeter of bucket top and bottom, bucket height.
2. Adopt import air pressure sensor , hot stamping pressure/ temperature/ speed/ time are adjustable.
3. The model bottom can adjust angle and front-back position
4. Max printing speed is 4 seconds circularly
5. Tension control system makes heat transfer film smooth without fold.
6. High precision import sonsor combine with double-side reciving film
7. Heat transfer pattern is stable ,specially suitable for Bar code and OR code
8. XYZ triaxial servo match the taper and working track which can make sure picture heat transfer in high precision positio
9. The patent number is: ZL201620065617.6
Tech-data |
HK320 |
Max heating transfer diameter |
320mm |
Power |
220V, 50/60HZ |
Max working air pressure |
0.4Mpa-0.7Mpa |
Heating transfer temperature |
0-390℃ |
Dimension |
1600*880*1800mm(l*w*h) |
Net Weight |
800kg |
